Very easy⏱ 5 min10 steps·Original on iFixit ↗

Seat Ateca Keyless Remote Battery Replacement - CR 2032 Battery

Step-by-step instructions

Step 1 · photo 1Step 1 · photo 2Step 1 · photo 3
1
  • 2024 Seat Ateca: the key fob started displaying low dead battery warnings on the vehicle's dashboard before it was 2 years old. This is the first time the coin cell has been replaced, and it is a very simple task.
  • 1. Press the button to release the "hidden" emergency key.
Step 2 · photo 1Step 2 · photo 2Step 2 · photo 3
2
  • Key removal.
Step 3 · photo 1Step 3 · photo 2Step 3 · photo 3
3
  • Using a small screwdriver, insert it into the left side and pry slightly to unclip the cover.
Step 4 · photo 1Step 4 · photo 2Step 4 · photo 3
4

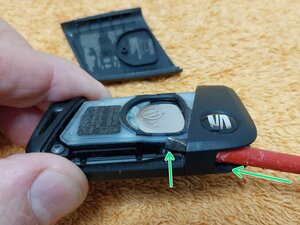

  • Remove the cover; in photo 2, we can see that we simply need to insert the tip 1.5 cm to use it as a lever.
  • Battery model CR 2032; note that other Seat key models use the CR2025.
Step 5 · photo 1Step 5 · photo 2Step 5 · photo 3
5
  • Use the tip of the screwdriver to pry in the gap to extract it. The battery pops out due to the internal spring.
Step 6 · photo 1Step 6 · photo 2Step 6 · photo 3
6
  • Insert the new CR 2032 battery and click it into place.
Step 7 · photo 1Step 7 · photo 2
7
  • Replace the cover, first by snapping it into the end opposite the key. As you can see, the cover is not symmetrical, so there is only one way it can be inserted.
Step 8 · photo 1Step 8 · photo 2Step 8 · photo 3
8
  • Press the 2 sides and the cover will snap into place.
Step 9 · photo 1Step 9 · photo 2Step 9 · photo 3
9
  • Remote ready; now you only need to insert the key and test it with the vehicle.
  • Other SEAT ATECA guides: [[Topic:SEAT ATECA 2020]]
  • END of guide.
Step 10 · photo 1Step 10 · photo 2
10
  • Just as a curious note, when the battery is tested with the DIY tester, it shows as practically ok, so the vehicle discards them as soon as their voltage drops slightly below 3 V.
  • [https://es.ifixit.com/Gu%C3%ADa/Comprobador+de+pilas+de++bot%C3%B3n+CR+2016+-+CR+2025+-+CR+2032+con+1+led+AZUL+(Parte+1)/203777|Document dedicated to the DIY 3 V battery tester:]
  • [https://es.ifixit.com/Gu%C3%ADa/Comprobador+de+pilas+de++bot%C3%B3n+CR+2016+-+CR+2025+-+CR+2032+con+1+led+AZUL+(Parte+2+-+PINZA+SOPORTE)./203974#s416823|Assembly of the clip-on tester:]
